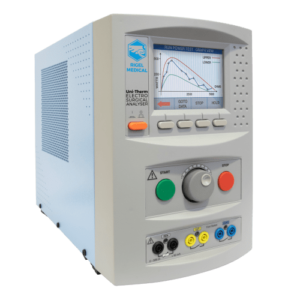

Rigel Uni-Therm Electrosurgical Analyser
The Rigel Uni-Therm Electrosurgical Analyser is a high-performance analyser designed for comprehensive testing and calibration of electrosurgical units (ESUs). Featuring automated manufacturer-specific test sequences, high-current testing up to 6A RMS, a non-inductive load bank and IEC 60601-2-2 leakage testing, it enables biomedical engineers to verify the safety and performance of electrosurgical generators quickly and accurately.
Rigel Medical
In Stock
West Africa
24-Month Manufacturer Warranty (Registration Required)
Comprehensive ESU Performance Testing
Designed to perform complete performance verification of electrosurgical generators, including power output, leakage current, contact quality monitoring (CQM) and waveform analysis.
.
High Current Load Testing
Features a unique non-inductive ceramic load bank capable of testing up to 6A RMS internally and 8A RMS with an external load, supporting continuous duty-cycle testing for high-power electrosurgical generators.
Automatic Test Sequences
Pre-programmed manufacturer-specific test procedures automate routine ESU testing, reducing testing time while ensuring consistent and repeatable results.
On-Screen Power Profile Analysis
Displays real-time power profiles directly on the colour screen, allowing engineers to evaluate generator performance and waveform characteristics instantly.
IEC 60601-2-2 Leakage Testing
Performs all required high-frequency leakage current tests in accordance with IEC 60601-2-2, helping ensure compliance with international electrosurgical safety standards.
Contact Quality Monitoring (CQM)
Tests return electrode monitoring systems with adjustable resistance from 1–475 Ω, verifying alarm functionality and patient safety systems.
Bluetooth & USB Data Transfer
Transfer test results, power profiles and automated test sequences to Med-eBase Asset Management Software using Bluetooth or USB connectivity for simplified documentation and reporting.

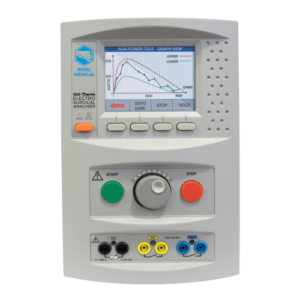

Large Colour User Interface
The intuitive full-colour display provides clear navigation, graphical waveform analysis and simple operation for biomedical engineers during routine maintenance.
Hospitals
Routine preventive maintenance and performance verification of electrosurgical generators.
Biomedical Engineering Departments
Calibration and safety testing of ESUs during scheduled maintenance.
Medical Equipment Service Providers
Field servicing, repair verification and preventive maintenance.
Medical Device Manufacturers
Production testing and quality assurance of electrosurgical equipment.
Calibration Laboratories
Performance verification and calibration of electrosurgical generators.
Healthcare Facilities
Acceptance testing and commissioning of new electrosurgical units.
Faster Automated Testing
Manufacturer-specific automated test sequences reduce manual intervention and improve workflow efficiency.
Accurate Performance Analysis
Real-time waveform and power profile analysis provide detailed insight into generator performance.
Complete Compliance Testing
Supports all essential IEC 60601-2-2 leakage tests and contact quality monitoring in one instrument.
Simplified Data Management
Store approximately 5,000 test records and export results in CSV or SSS formats for reporting and asset management.
Specification | Details |
Model | Rigel Uni-Therm |
Manufacturer | Rigel Medical |
Product Type | Electrosurgical Analyser |
Power Measurement | True RMS |
Power Range | 0–500 W |
Current Measurement | 0–6000 mA RMS |
External Load Test | Up to 8000 mA |
Voltage Range | 0–700 V RMS |
Peak Voltage | Up to 10 kV |
Load Bank | 0–5115 Ω |
Load Resolution | 5 Ω (1023 Steps) |
Contact Quality Monitoring | 1–475 Ω |
Leakage Testing | IEC 60601-2-2 High Frequency Leakage |
Memory | Approx. 5,000 Records |
Data Export | CSV & SSS |
Connectivity | Bluetooth & USB |
Display | Full Colour LCD |
Dimensions | 370 × 300 × 204 mm |
Weight | 10 kg |
Power Supply | 115/230 VAC, 48–66 Hz |
Why Choose Aragon Africa
Official Rigel Medical Distributor
Biomedical Expertise
Professional consultation, installation, commissioning and application support from experienced biomedical engineers.
Local Technical Support
Fast Regional Delivery
Reliable and prompt delivery to hospitals, laboratories and healthcare facilities throughout the region.
Frequently Asked Questions
What is the Rigel Uni-Therm used for?
The Uni-Therm is used for testing, calibrating and verifying the performance of electrosurgical units (ESUs), including power output, leakage current and contact quality monitoring.
Which safety standard does it support?
The analyser performs leakage and performance testing in accordance with IEC 60601-2-2, the international standard for electrosurgical equipment.
What is the maximum load range?
The Uni-Therm features a 0–5115 Ω non-inductive load bank with 5 Ω resolution, allowing detailed power profile analysis across a wide range of loads.
Can test results be exported?
Yes. Test records can be stored internally and exported via Bluetooth or USB in CSV or SSS formats for use with Med-eBase Asset Management Software.
How many test records can the Uni-Therm store?
The analyser can store approximately 5,000 test records before exporting them to a PC.
Why choose the Rigel Uni-Therm?
The Uni-Therm combines high-current ESU testing, automated test sequences, real-time power profile analysis, IEC 60601-2-2 compliance and advanced data management in a single instrument, making it an ideal solution for biomedical engineers responsible for maintaining electrosurgical equipment.
