Defibrillator Testing Solutions

Advanced biomedical analyzers for verifying energy discharge, cardioversion synchronization time, AED algorithms, and transcutaneous pacemaker outputs in accordance with IEC 60601-2-4 standards.

WhatsApp Now

Request Quote

Products Offered

4+

Energy Testing

360J

Warranty

5 yr

Calibration Cycle

12 Mo

Rigel Precision Line

Why Choose Aragon Africa

Delivering world-class Rigel defibrillator analyzers engineered for high reliability in clinical and field environments.

Accurate Energy Measurement

High-precision load resistors capture monophasic, biphasic, and pulsed waveforms up to 360 Joules with certified accuracy.

AED & Manual Defib Support

Comprehensive testing capabilities for Automated External Defibrillators, clinical manual units, and emergency shock devices.

Fast Preventive Maintenance

Automated test protocols shorten inspection cycles, enabling rapid multi-point safety testing on hospital wards.

Calibration & Repair Services

In-house ISO 17025 traceable calibration and repair lab facilities situated in South Africa ensuring ongoing device compliance.

Explore Range

Defibrillator Testing Products

High-accuracy analyzers, universal paddle adapters, and calibration service kits for clinical engineering workflows.

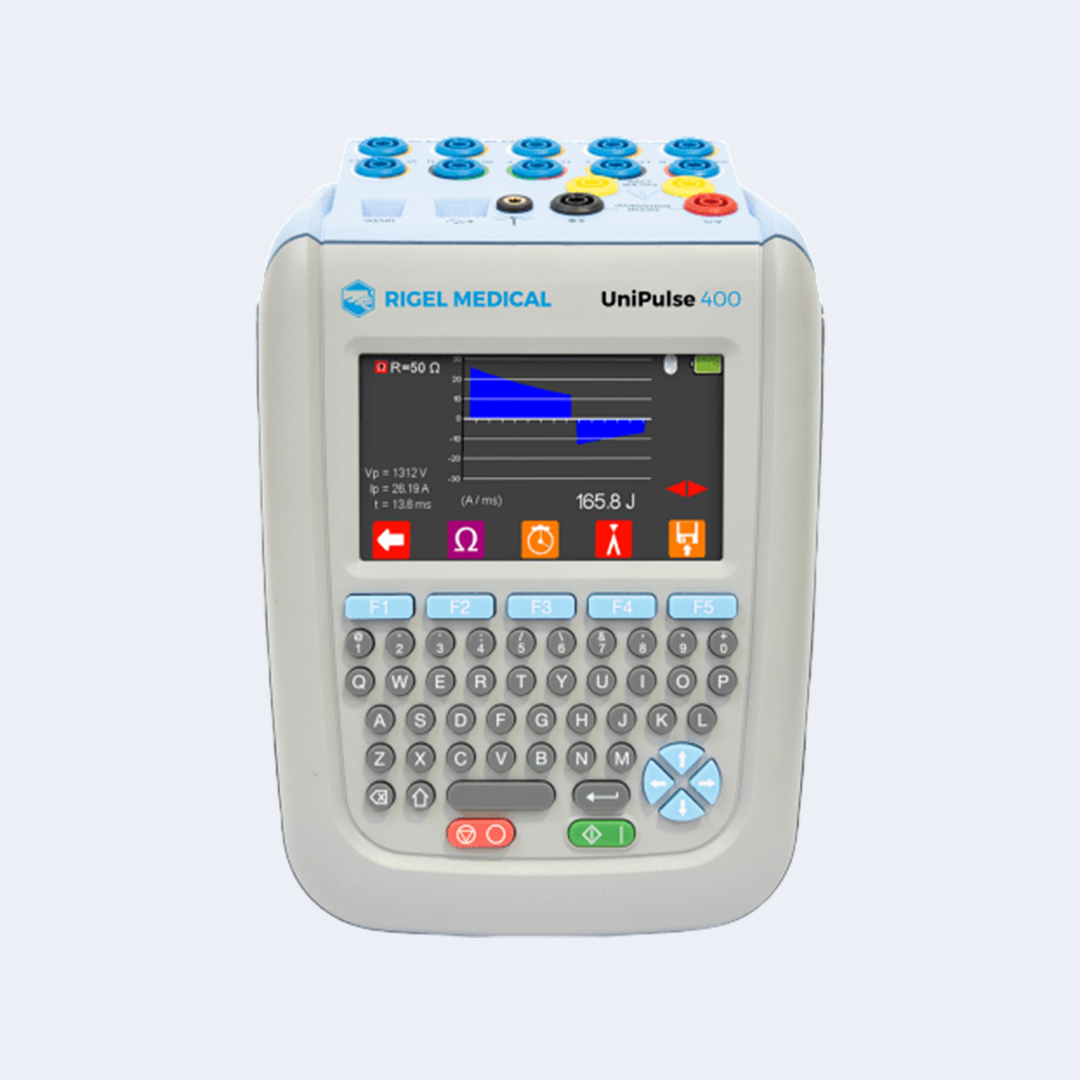

UniPulse 400

All-in-one defibrillator analyzer providing energy measurement, 12-lead ECG arrhythmia simulation, transcutaneous pacer testing, and cardioversion sync delay timing.

Impulse 7000DP

Advanced benchtop defibrillator performance analyzer designed for laboratory calibration and thorough medical device manufacturing quality testing.

Defib Accessories & Adapters

Universal paddle contact plates, fast-click AED cable adapters, pacer load resistors, and high-voltage discharge safety leads.

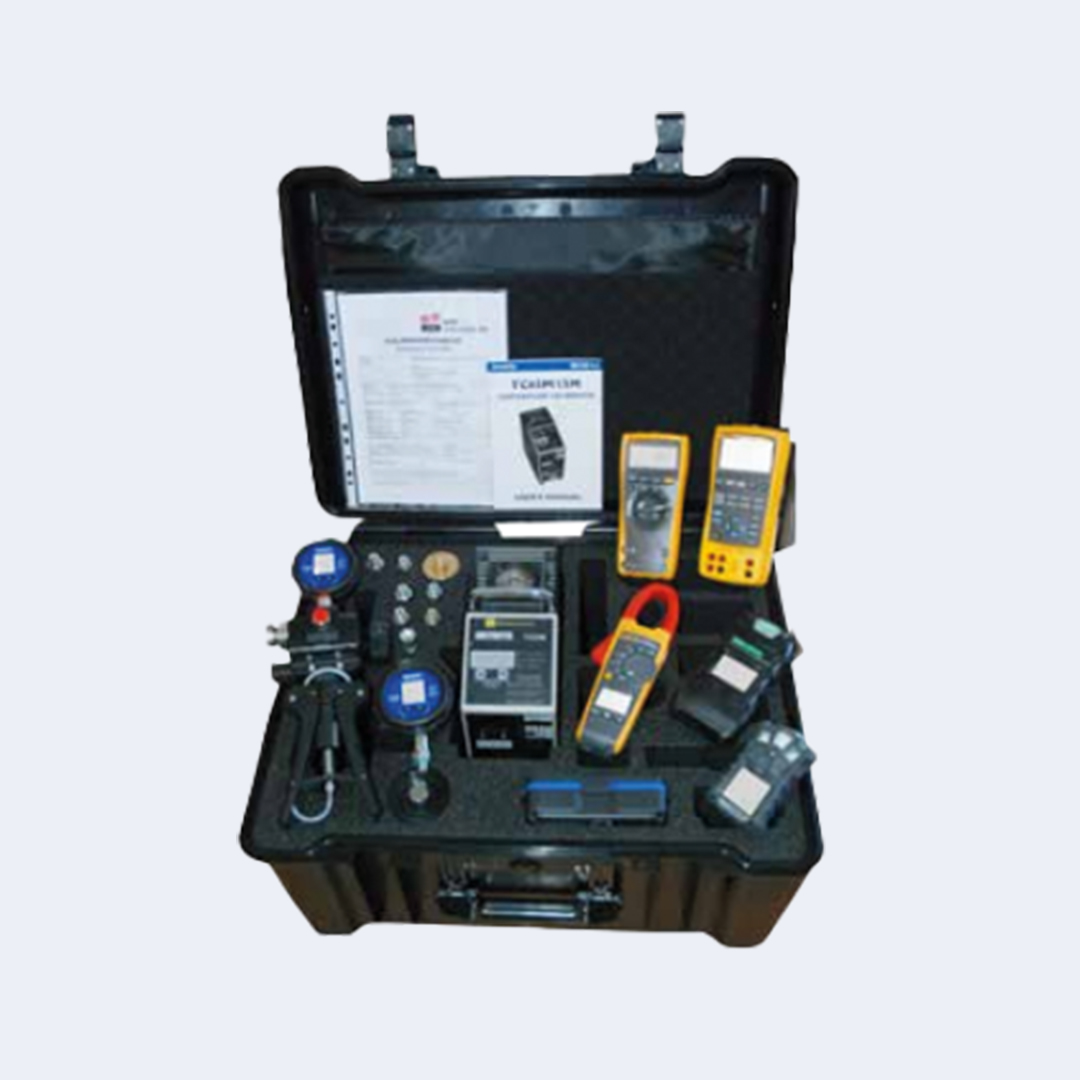

Calibration & Service Kits

Annual factory calibration certification packages, precision load verification modules, and extended maintenance service agreements.

Feature Matrix

Comparison Table

CAPABILITY / FEATURE	UniPulse 400	Impulse 7000DP	Adapters & Leads	Service Kits
Energy Testing (up to 360J)			Pass-Through	Verified
AED Testing Algorithms				-
Manual Defibrillator Testing				-
Transcutaneous Pacer Test			Pacer Cable	-
ECG & Arrhythmia Simulation	12-Lead Full	12-Lead Full	-	-
Cardioversion Sync Delay			-	-
Reporting & Data Export	USB / Onboard	Software Suite	-	ISO Certs

Standardized Protocol

How It Works

1 Connect Analyzer

Secure paddle plates or fast-click cable adapters from the defibrillator to the analyzer load jacks.

2 Select Test

Choose manual energy delivery, AED algorithm test, cardioversion sync delay, or pacer current sequence.

3 Deliver Shock

Charge the defibrillator unit and execute test shock directly into the internal 50 ohm non-inductive load.

4 Measure Results

Instantly verify energy in Joules, peak current, voltage, pulse width, and sync delay time on screen.

5 Export Report

Log test results into memory and transfer data via USB to generate compliant safety certificates.

Deployment Sectors

Target Applications

Hospitals & Clinics

Routine preventive maintenance on emergency ward defibrillators, crash carts, and operating theater units.

Biomedical Engineers

BMET specialists carrying out fast, battery-powered field testing across multi-facility healthcare networks.

Service Centres

Independent medical service providers offering certified post-repair verification and annual compliance audits.

OEM Manufacturers

High-accuracy bench testing during assembly and end-of-line quality assurance for defibrillator production.

Resource Hub

Support & Services

Calibration

Annual ISO 17025 accredited calibration services ensuring precision voltage and energy measurements.

Book Calibration

Component Repair

In-house technical support for hardware overhauls, load resistor replacements, and firmware upgrades.

Request Repair

Registration

Activate your 5-year standard warranty and unlock priority support ticketing across Africa.

Downloads

Access technical spec sheets, application notes, user manuals, and PC software drivers.

View Resources

FAQ Helpdesk

Frequently Asked Questions

Why test defibrillators?

Defibrillators deliver high-voltage electrical energy to treat life-threatening cardiac arrhythmias. Regular testing ensures that energy output (Joules), discharge waveforms, internal relay timing, and cardioversion sync delay match critical clinical specifications to guarantee immediate patient safety.

Can AEDs be tested?

Yes. Analyzers like the UniPulse 400 simulate specific cardiac arrhythmias (such as shockable Ventricular Fibrillation and non-shockable Normal Sinus Rhythm) to verify that an Automated External Defibrillator (AED) correctly analyzes ECG signals and prompts shock advisory accurately.

What parameters are measured?

Our defibrillator analyzers measure energy discharge (0 to 360 Joules), peak voltage, peak current, pulse duration, cardioversion synchronization time delay (ms), transcutaneous pacemaker current/rate, and 12-lead ECG response signals.

How often should testing be performed?

Medical device regulatory standards (including IEC 60601-2-4 and Joint Commission healthcare protocols) recommend preventive maintenance and performance testing every 6 to 12 months, as well as immediately following any repair or battery replacement.

Emergency Preparedness

Keep Every Defibrillator Ready to Save Lives

Partner with Aragon Africa to outfit your biomedical engineering teams with clinical-grade defibrillator analyzers, certified calibration protocols, and regional technical support.

Request a Quote

WhatsApp Now

DEFIB ANALYZER STATUS

READY

ENERGY

200 J

SYNC DELAY

28 ms

PACER

60 mA
