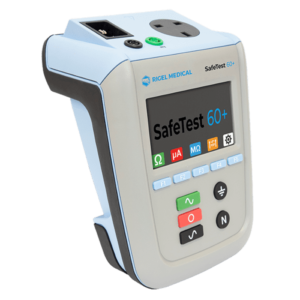

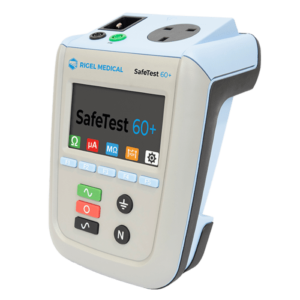

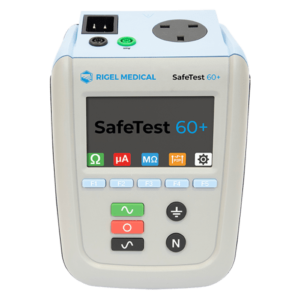

Rigel SafeTest 60+ Electrical Safety Analyser
The Rigel SafeTest 60+ is a robust, entry-level electrical safety analyser designed for fast and reliable testing of medical and laboratory equipment. Built for high-volume testing environments, it supports major international electrical safety standards while providing accurate earth bond, insulation resistance, leakage current, and patient applied parts testing in a compact, portable design.
Rigel Medical
In Stock
West Africa
1-Year Warranty
Entry-Level Medical Safety Analyser
Designed specifically for high-volume electrical safety testing of medical and laboratory equipment while maintaining accuracy and ease of use.
International Safety Standards
Accurate Earth Bond Testing
Performs high-current, low-energy earth bond testing using Rigel’s proven technology for accurate and repeatable measurements
Patient Applied Parts Testing
Supports patient leakage current testing and insulation measurement for medical devices with applied parts, extending testing capability beyond basic equipment.
Large Colour Display
Features a bright colour display with an intuitive, colour-coded interface for fast test selection and simplified operation.
Dynamic Pass/Fail Thresholds
Provides live pass/fail indication during testing, helping biomedical engineers identify failures immediately and improve testing efficiency.
Hospitals
Routine electrical safety inspections of medical equipment.
Biomedical Engineering Departments
Preventive maintenance and compliance testing.
Medical Equipment Service Providers
Repair verification and field servicing.
Laboratory Equipment Testing
Ideal for beds, hoists, infusion pumps, CPAP systems, centrifuges and similar equipment.
Calibration Laboratories
Verification of electrical safety according to international standards.
Healthcare Facilities
Acceptance testing and periodic inspection of medical equipment.
High-Volume Testing
Designed for organisations performing frequent electrical safety inspections. .
Faster Test Workflow
Simple push-button operation with fast step-through test routines reduces inspection time.
Reliable Results
Automatic warning of secondary earth paths helps prevent invalid measurements and unnecessary retesting. .
Compact & Portable
Lightweight, rugged construction makes it ideal for hospitals, workshops and on-site biomedical servicing. .
Specification | Details |
Model | Rigel SafeTest 60+ |
Manufacturer | Rigel Medical |
Standards | IEC 60601, IEC 62353, IEC 61010, NFPA-99 |
Earth Bond Test | ≥200 mA DC |
Insulation Resistance | 500V DC |
Insulation Range | 100 KΩ – 100 MΩ |
Leakage Current | Equipment, Earth, Enclosure & Patient Leakage |
Voltage Measurement | 0–300 VAC |
Load Current | 0–20 A |
Maximum Load | 20 A @120 V / 16 A @230 V |
Display | Large Colour LCD |
Weight | 1.1 kg |
Dimensions | 225 × 150 × 100 mm |
Power Supply | 90–264 V AC, 48–64 Hz |
Protection | IP40 |
Why Choose Aragon Africa
Official Rigel Medical Distributor
Biomedical Expertise
Professional installation, commissioning and application support.
Local Technical Support
Fast Regional Delivery
Frequently Asked Questions
What is the SafeTest 60+ used for?
The SafeTest 60+ performs electrical safety testing of medical and laboratory equipment to ensure compliance with international safety standards.
Which standards does it support?
It supports IEC 60601, IEC 62353, IEC 61010 and NFPA-99 electrical safety testing.
Can it test patient applied parts?
Yes. The SafeTest 60+ supports patient leakage current testing and insulation resistance measurements for medical equipment with applied parts.
Which equipment is it suitable for?
It is ideal for beds, hoists, infusion pumps, CPAP systems, centrifuges and many other medical and laboratory devices requiring routine electrical safety testing.
Is it portable?
Yes. The analyser features a compact, lightweight and rugged design suitable for both workshop and field service applications.
Why choose the SafeTest 60+?
The SafeTest 60+ combines ease of use, fast testing, reliable measurements and compliance with major international standards, making it an excellent solution for routine biomedical electrical safety testing.
