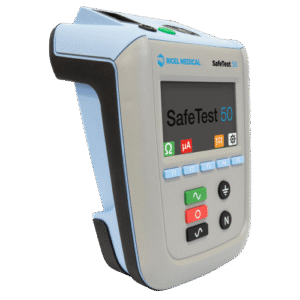

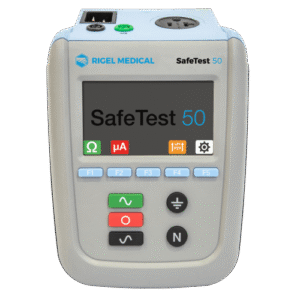

Rigel SafeTest 50 Electrical Safety Analyser
The Rigel SafeTest 50 Electrical Safety Analyser is a compact, rugged and cost-effective solution for routine electrical safety testing of medical and laboratory equipment. Designed for high-volume testing environments, it provides fast and reliable earth bond, leakage current and insulation testing while supporting major international electrical safety standards. It is ideal for equipment that does not require patient lead testing.
Rigel Medical
In Stock
West Africa
Manufacturer Warranty
Compact & Rugged Design
The SafeTest 50 features a lightweight, durable design built for demanding hospital, laboratory and field service environments, making it ideal for routine biomedical safety inspections.
International Safety Standards
Supports electrical safety testing according to:
Ensuring compliance with recognised international safety regulations.
High Current Earth Bond Testing
Performs accurate high-current, low-energy earth bond testing using Rigel’s proven ZAP technology, delivering repeatable and reliable measurements.
Leakage Current Testing
Supports equipment leakage, chassis leakage, touch leakage and ground leakage testing across multiple international standards for comprehensive electrical safety verification.
Large Colour Display
A bright colour display with an intuitive colour-coded interface enables quick selection of tests and fault conditions with a single key press.
Manual Test Control
Full manual control allows engineers to execute only the required tests while maintaining complete control over power cycles and fault conditions for flexible testing.
Fast Test Workflow
Fast step-through test routines minimise power interruptions, increasing efficiency during high-volume testing programmes.
Hospitals
Routine electrical safety testing of medical equipment.
Biomedical Engineering Departments
Preventive maintenance and scheduled compliance testing.
Medical Equipment Service Providers
Field servicing and repair verification.
Laboratory Equipment
Suitable for testing:
that do not require patient lead testing.
that do not require patient lead testing.
Verification of electrical safety according to international standards.
Healthcare Facilities
Acceptance testing and routine inspection of electrical medical devices.
Cost-Effective Solution
Provides an affordable electrical safety testing solution without compromising accuracy or reliability.
Faster Testing
Single-key operation and streamlined test routines improve productivity for biomedical engineers.
Reliable Measurements
Automatic secondary earth path warnings help prevent incorrect readings and improve measurement accuracy.
Portable Operation
Compact and lightweight construction allows easy transportation between departments and healthcare facilities.
Specification | Details |
Model | Rigel SafeTest 50 |
Manufacturer | Rigel Medical |
Standards | IEC 60601, IEC 62353, IEC 61010, NFPA-99 |
Ground Bond Test | >200 mA DC |
Ground Bond Method | 2-Wire ZAP Technique |
Insulation Resistance | 500 VDC |
Insulation Range | 100 kΩ – 20 MΩ |
Leakage Current | Equipment, Ground, Chassis & Touch Leakage |
Voltage Measurement | 0–300 VAC |
Load Current | 0–20 A |
Maximum Current Rating | 20 A @120V / 16 A @230V |
Display | Large Colour LCD |
Weight | Approx. 2 lb (0.9 kg) |
Power Supply | 90–264 VAC, 48–64 Hz |
Protection Rating | IP40 |
Why Choose Aragon Africa
Official Rigel Medical Distributor
Biomedical Expertise
Professional product selection, installation and technical guidance from experienced biomedical specialists.
Local Technical Support
Fast Regional Delivery
Reliable supply and prompt delivery to hospitals, clinics and healthcare facilities.
Frequently Asked Questions
What is the Rigel SafeTest 50 used for?
The SafeTest 50 is designed for routine electrical safety testing of medical and laboratory equipment that does not require patient lead testing.
Which standards does it support?
It supports IEC 60601, IEC 62353, IEC 61010 and NFPA-99 electrical safety testing standards.
Does the SafeTest 50 perform patient leakage testing?
No. The SafeTest 50 is intended for general medical equipment testing and is best suited for devices that do not require patient lead testing. For patient-applied part testing, consider the SafeTest 60+ or Rigel 62353+.
What equipment can it test?
It is suitable for beds, hoists, infusion pumps, CPAP systems, centrifuges and a wide range of laboratory and medical electrical equipment.
Is the SafeTest 50 portable?
Yes. Its compact, rugged and lightweight design makes it ideal for workshop use as well as on-site biomedical service applications.
Why choose the Rigel SafeTest 50?
The SafeTest 50 offers an economical, dependable and easy-to-use solution for high-volume electrical safety testing while ensuring compliance with major international safety standards.
