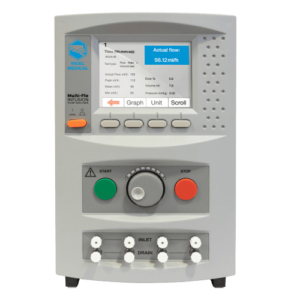

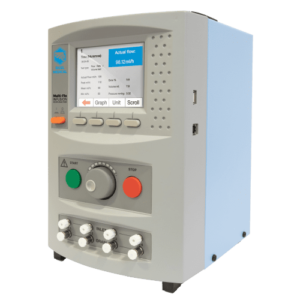

Rigel Multi-Flo Infusion Pump Analyser
The Rigel Multi-Flo Infusion Pump Analyser is a high-precision, portable analyser designed to verify the performance of infusion pumps and syringe pumps in accordance with IEC 60601-2-24. Available in 1, 2 and 4-channel configurations, it delivers accurate flow, pressure, occlusion and bolus measurements while enabling simultaneous testing of multiple infusion devices to significantly improve testing efficiency.
Rigel Medical
In Stock
West Africa
24-Month Manufacturer Warranty (Registration Required)
Multi-Channel Infusion Pump Testing
Available in 1, 2 and 4-channel versions, allowing simultaneous testing of up to four infusion pumps, reducing testing time in high-volume biomedical environments.
IEC 60601-2-24 Compliance
Designed specifically to verify infusion devices according to IEC 60601-2-24, ensuring reliable performance and regulatory compliance.
Accurate Flow Measurement
Measures infusion flow rates from 0.010 to 1500 mL/h with exceptional accuracy, including low-flow applications commonly used in critical care and neonatal settings.
Instantaneous Flow & Pressure Graphs
Displays real-time numerical values and graphical trends for flow and pressure, enabling quick identification of performance variations during testing.
Occlusion & Back Pressure Testing
Performs occlusion alarm verification and programmable back-pressure testing to ensure infusion pumps respond correctly under blocked-line conditions.
PCA / Bolus Measurement
Measures bolus delivery volume, basal flow rate and PCA performance for comprehensive infusion pump verification.
Large Internal Memory
Automatically stores test results and measurement data, providing complete traceability for preventive maintenance and compliance documentation.
Med-eBase Remote Control
Operate the Multi-Flo remotely from a PC using Med-eBase software, automate manufacturer-specific test routines and generate professional reports.
Hospitals
Routine testing and preventive maintenance of infusion and syringe pumps.
Biomedical Engineering Departments
Verification of infusion pump performance during scheduled maintenance.
Medical Equipment Service Providers
Portable field servicing and repair verification.
Medical Device Manufacturers
Production testing and quality assurance of infusion systems.
Calibration Laboratories
Calibration and verification of infusion devices.
Healthcare Facilities
Acceptance testing and commissioning of infusion pumps before clinical use.
Double Testing Capacity
Multi-channel testing enables engineers to verify up to four infusion pumps simultaneously, significantly reducing testing time.
Improved Accuracy
Provides highly accurate flow, pressure and volume measurements for dependable verification of infusion device performance.
Automated Test Procedures
Supports manufacturer-specific automated test sequences through Med-eBase software, reducing manual intervention and human error.
Complete Traceability
Automatically stores test data and exports results for documentation, reporting and asset management.
Specification | Details |
Model | Rigel Multi-Flo |
Manufacturer | Rigel Medical |
Product Type | Infusion Pump Analyser |
Compliance | IEC 60601-2-24 |
Channel Options | 1, 2 or 4 Channels |
Flow Range | 0.010 – 1500 mL/h |
Measured Flow Range | 0.100 – 1450 mL/h |
Flow Accuracy | ±1% of Reading |
Pressure Range | -500 to 2500 mmHg |
Back Pressure | -200 to 600 mmHg |
PCA/Bolus Volume | 0.5 – 100 mL |
Total Volume | 0.001 – 9999 mL |
Display | ¼ VGA Colour Graphic LCD |
Communication | USB Type A & USB Type B |
Data Storage | Up to 360 Hours of Test Data |
Power Supply | 90–264 VAC, 50/60 Hz |
Weight | 5 kg (1 Channel), 6 kg (2 Channel), 8 kg (4 Channel) |
Protection Rating | IP40 |
Why Choose Aragon Africa
Official Rigel Medical Distributor
Biomedical Expertise
Expert assistance with installation, commissioning and biomedical application support.
Local Technical Support
Fast Regional Delivery
Reliable delivery to hospitals, laboratories and healthcare facilities across the region.
Frequently Asked Questions
What is the Rigel Multi-Flo used for?
The Multi-Flo is used to verify the performance of infusion pumps and syringe pumps by measuring flow rate, pressure, occlusion performance and bolus delivery in accordance with IEC 60601-2-24.
How many infusion pumps can it test at once?
The Multi-Flo is available in 1, 2 and 4-channel configurations, allowing simultaneous testing of up to four infusion devices.
What flow rates can it measure?
It accurately measures infusion flow rates from 0.010 to 1500 mL/h, making it suitable for both low-flow and high-flow infusion devices.
Does it support occlusion alarm testing?
Yes. The Multi-Flo performs programmable occlusion and back-pressure testing, enabling verification of infusion pump alarm performance.
Can it be controlled from a computer?
Yes. Using Med-eBase software, users can remotely control the Multi-Flo, automate test sequences and generate professional reports.
Why choose the Rigel Multi-Flo?
The Rigel Multi-Flo combines high-accuracy flow measurement, multi-channel testing, IEC 60601-2-24 compliance, automated test routines and comprehensive data management, making it an ideal solution for biomedical engineers responsible for infusion pump performance verification.
