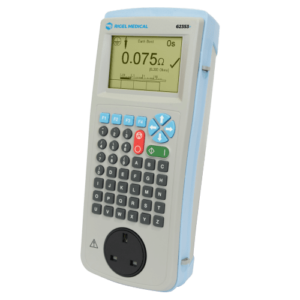

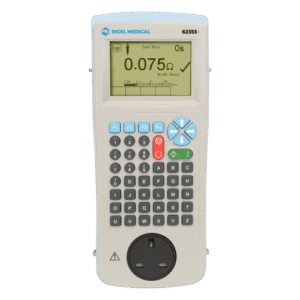

Rigel 62353+ Electrical Safety Analyser
The Rigel 62353+ Electrical Safety Analyser is a compact, battery-powered safety tester designed for fast and accurate testing of medical electrical equipment in accordance with IEC/EN 62353. Featuring automatic test sequences, onboard data storage, battery-powered insulation testing and flexible user-defined test routines, it provides biomedical engineers with an efficient solution for in-service and post-repair safety testing.
Rigel Medical
In Stock
West Africa
Manufacturer Warranty
Compact & Rugged Design
The SafeTest 50 features a lightweight, durable design built for demanding hospital, laboratory and field service environments, making it ideal for routine biomedical safety inspections.
International Safety Standards
Perform earth bond and insulation resistance testing without requiring mains power, allowing engineers to work safely and efficiently in busy clinical environments.
Flexible Test Sequences
Supports fully automatic, semi-automatic and manual testing with user-definable test routines to suit different maintenance procedures.
Onboard Data Storage
Store up to 10,000 test records, customised test sequences, visual inspections and performance tests for complete asset traceability.
Low Voltage Insulation Testing
Offers 50V, 100V, 250V and 500V DC insulation resistance testing, making it suitable for both conventional and low-voltage medical equipment.
PC Communication
Transfer stored test records directly to a PC using Med-eBase software for asset management, reporting and preventive maintenance scheduling.
Hospitals
Routine electrical safety testing of medical electrical equipment.
Biomedical Engineering Departments
Preventive maintenance and post-repair verification.
Medical Equipment Service Providers
Portable field testing during servicing and maintenance.
Calibration Laboratories
Verification of electrical safety according to international standards.
Medical Equipment Manufacturers
Production testing and quality assurance.
Healthcare Facilities
Acceptance testing and periodic compliance inspections.
Faster Testing
Automatic test routines reduce testing time while maintaining repeatable and reliable results.
Complete Portability
Battery-powered operation eliminates trailing power cables, allowing unrestricted movement around medical equipment.
Accurate Results
Automatic secondary verification helps ensure correct measurements the first time, reducing repeat testing. (Medicalexpo)
Efficient Asset Management
Built-in memory and PC connectivity simplify test record management, reporting and preventive maintenance scheduling.
Specification | Details |
Model | Rigel 62353+ Electrical Safety Analyser |
Manufacturer | Rigel Medical |
Standards | IEC/EN 62353, NFPA-99, AS/NZS 3551 |
Earth Bond Test | >200 mA DC |
Insulation Voltage | 50V, 100V, 250V & 500V DC |
Leakage Current | Direct, Differential & Alternative |
Power Measurement | 0.1–4 kVA |
Mains Outlet Test | 0–300 VAC |
Data Storage | Up to 10,000 Test Records |
Test Modes | Automatic, Semi-Automatic & Manual |
Connectivity | PC Communication (Med-eBase Compatible) |
Battery | 6 × AA Batteries |
Weight | 1.6 kg |
Dimensions | 270 × 110 × 75 mm |
Why Choose Aragon Africa
Official Rigel Medical Distributor
Biomedical Expertise
Experienced engineers provide installation, commissioning and technical guidance.
Local Technical Support
Fast Regional Delivery
Reliable logistics and prompt delivery to hospitals, laboratories and healthcare facilities.
Frequently Asked Questions
What is the Rigel 62353+ used for?
The Rigel 62353+ is designed for routine and post-repair electrical safety testing of medical electrical equipment in accordance with IEC/EN 62353.
Which standards does it support?
It supports IEC/EN 62353, NFPA-99 and AS/NZS 3551 electrical safety testing standards.
Is the Rigel 62353+ battery powered?
Yes. It performs battery-powered earth bond and insulation resistance testing, allowing completely portable operation.
How many test records can it store?
The analyser can store up to 10,000 test records, along with custom test routines and inspection data.
What insulation voltages are available?
It supports insulation resistance testing at 50V, 100V, 250V and 500V DC, making it suitable for both standard and low-voltage medical equipment.
Can it integrate with asset management software?
Yes. The Rigel 62353+ supports PC communication and works with Med-eBase software for downloading test records, managing assets and generating compliance reports.
